“83-Series” Roll-Up Door Lock
Product Information

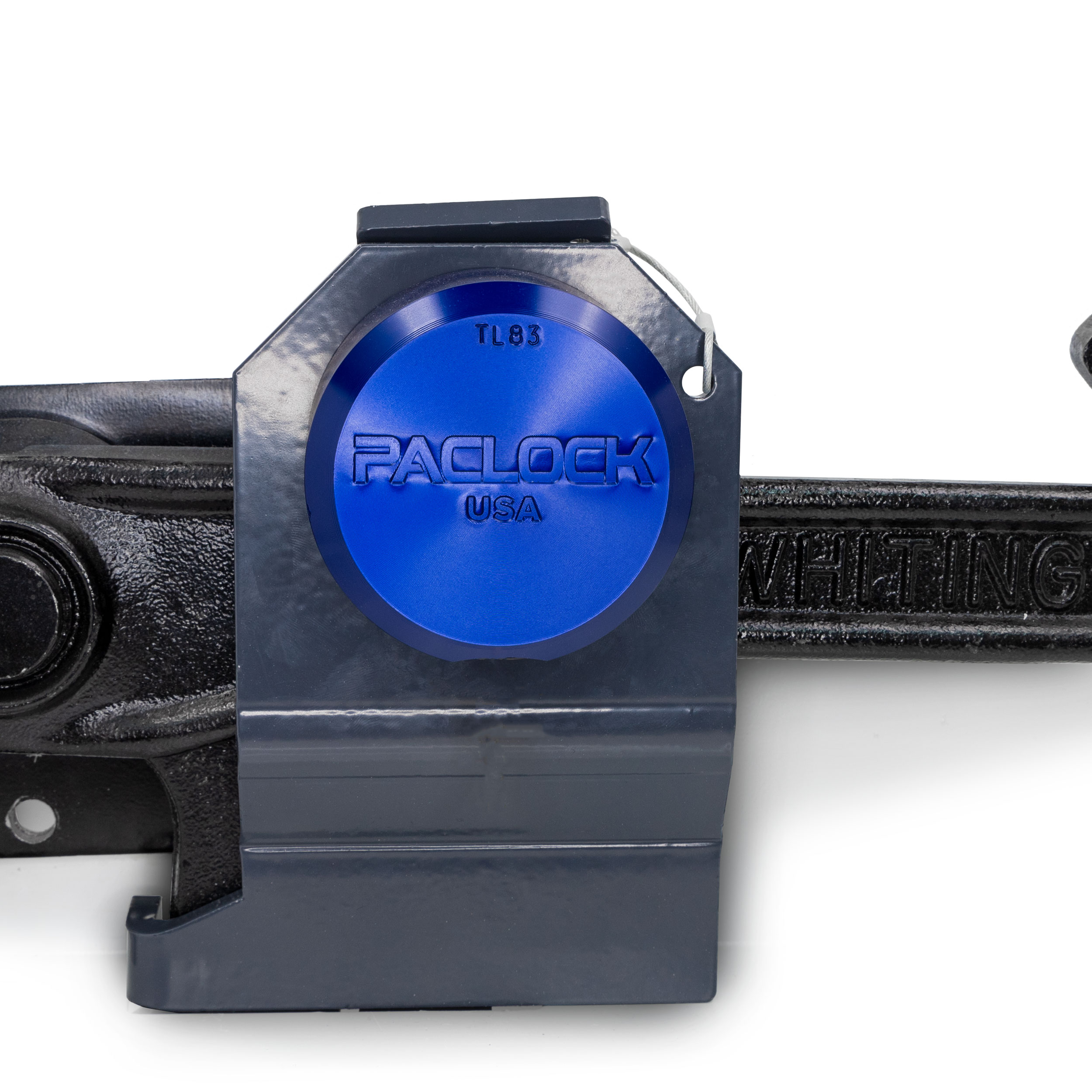

The TL83 is a two part locking device that leverages the strengths of a hidden shackle lock to provide the highest level of security for a roll-up style door. The hidden shackle design protects your lock from direct access by bolt cutters and hacksaws. Because the TL83 is not permanently installed, it is a portable system that can be used on more than one truck or trailer roll-up door. There are two versions available designed to fit WHITING® or TODCO® roll-up style doors.
The two components of the TL83 are all made of steel, the hockey puck-style lock being hardened steel. The body of the TL83 is ¼” thick solid extruded steel which is welded to the lock. The locking bridge and HASP located in the back of the TL83 is a combination of ¼” steel and ½” steel! TL83’s body is made from solid extruded steel, precision CNC machined, hardened, and then zinc-plated in the U.S.A. to exact standards. The entire assembly is black powder-coated in the U.S.A. for superior rust protection.
The high-security locking solution does not interfere with installing a security seal and includes the PAC-BAND all-weather cover option. The PAC-BAND is a high-grade silicone band that affixes to your lock and covers the cylinder opening preventing debris from entering the cylinder which provides additional protection against the elements.
Product Information
FAQ's
PACLOCK’s Universal Cylinder System™ (UCS™) gives you total flexibility — choose Keyed Alike (all your locks open with the same key) or Keyed Different (each lock has its own unique key). With our U-PICK!™ option, you can even choose your own key number when ordering keyed alike, or let PACLOCK assign one for you — either way, you get total control and simplicity.
UCS™ works across a wide range of lock types — from padlocks to trailer locks to job box locks — all using the same key system. It’s the best choice for new PACLOCK customers who want simplicity, scalability, and control, with over 20,000+ unique key changes, a high-performance 6-pin cylinder with stainless steel pins, and tight ±0.002” tolerances that help reduce shimming risk and resist picking and bumping.
Standard Rekeyable (SR) is PACLOCK’s original rekeyable system, designed for simpler PACLOCK-only setups. It uses a 6-pin cylinder with 8 pin heights and stainless steel pins, with a key range of 93001–95802 (up to 4,000 key changes). For expanded systems or new purchases, UCS™ is the recommended path. If you’re currently using SR and want to transition, contact PACLOCK to upgrade your system.
Yes — PACLOCK supports a wide range of third-party cylinder technologies, so you can integrate our padlocks into your existing key system. We manufacture padlocks designed to accept commercial formats including Master Lock® M1, Key-in-Knob/Lever (KIK/KIL), SFIC (5-, 6-, and 7-pin), FSIC, and LFIC systems (Medeco®, Sargent®, Corbin Russwin®, ASSA®, Yale®, and more).
These cylinder technologies are reflected directly in the part number. For example, an 81-Series trailer door lock configured for a Master Lock® M1 cylinder would be M1-81A.
PACLOCK does not supply commercial cylinders — padlocks ship less cylinder, ready to be installed with your existing cores and keys.
Yes — PACLOCK provides master keying and grand master keying solutions for customers who need layered access control. These systems are built to order, so reach out and we’ll walk you through what’s possible for your organization. Lead times may vary depending on system complexity.
